Plastic Injection Vial|Vaccine Bottle Supplier-Xinfuda

Injection Vial

Size Chart

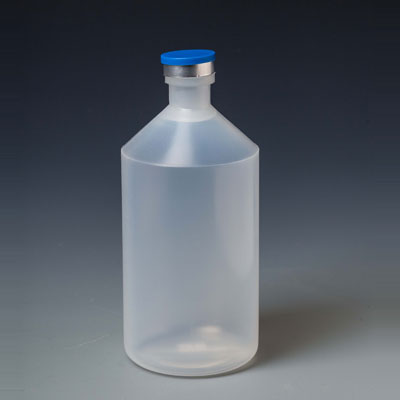

Plastic Injection Vials with rubber stopper and aluminum cap have two types one is small injection vial from 10ml to 100ml, another is big injection vial from 100ml to 500ml. Vaccine bottle with high temperature and pressure sterilization, or EO sterile.

Reference	Capacity	Body height	Body diameter	Neck inner size	Neck outer size	Weight
B1	10ml	50mm	21mm	12.8±0.2mm	19.6±0.2mm	3.4g
B2	20ml	62mm	30mm	12.8±0.2mm	19.6±0.2mm	6.3g
B3	100ml	85mm	49mm	12.8±0.2mm	19.6±0.2mm	16g
B13	100ml	91mm	49mm	17.5±0.2mm	27.5±0.2mm	18g
B22	100ml	91mm	50mm	12.8±0.2mm	19.6±0.2mm	14g
B26	50ml	72mm	42mm	12.8±0.2mm	19.6±0.2mm	10g
B28	100ml	86mm	53mm	12.8±0.2mm	19.6±0.2mm	20g
B89	100ml	89mm	48mm	12.8±0.2mm	19.6±0.2mm	14.2g
B38	250ml	155mm	77mm	17.5±0.2mm	27.5±0.2mm	45g
B31	250ml	126mm	63mm	17.5±0.2mm	27.5±0.2mm	38.4g
B49	250ml	129mm	63.4mm	12.8±0.2mm	19.6±0.2mm	36g
B67	500ml	180mm	83mm	17.5±0.2mm	27.5±0.2mm	66g
B76	250ml	132mm	65mm	17.5±0.2mm	27.5±0.2mm	36.2g

Injection Vial

Advantage of injection vial:1.ISO9001:2008
2.It is sealed with a rubber plug and aluminum cover, with good sealing performance;
3. The bottle body is smooth, the bottle wall is uniform, and the product quality is stable;
4.From 10ml to 500ml, we can slao offer customization

Application

Injection vial for animal medicine
